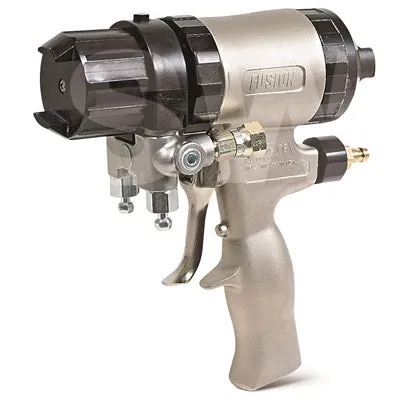

Graco Fusion MP Spray Gun
Plural-Component Spray Gun
The Graco Fusion Mechanical Purge Gun (MP) is a Plural Component gun, for high output applications. This gun is designed for longevity with a PolyCarballoy mix module. It is easy to clean with a drill bit and has superior mixing capabilities.Application for use:
- Roof Coatings
- Pipe and Tank Coating
- Secondary Containment Spill Prevention
- Spray On Bedliners
- Waterproofing
- Roof and Wall Insulation
- Air Sealing Attics and Rim Joists
Material for use:
- Polyurethane
- Roof Coatings
- Polyurea
- Spray Polyurethane Foam
- No-Heat Foam
Technical Specs
Maximum Fluid Working Pressure: 3500 psiMaximum Working Air Inlet Pressure: 130 psi
Maximum Fluid Temperature: 200F
Weight: 2.6 lb
Air Inlet Size: 1/4 npt Quick Disconnect Nipple
A Component (ISO) Inlet Size: -5 JIC; 1/2-20 UNF
B Component (Resin) Inlet Size: -6 JIC; 9/16-18 UNF
Wetted Parts: Aluminum, stainless steel, carbon steel, carbide, chemically resistant O-rings
