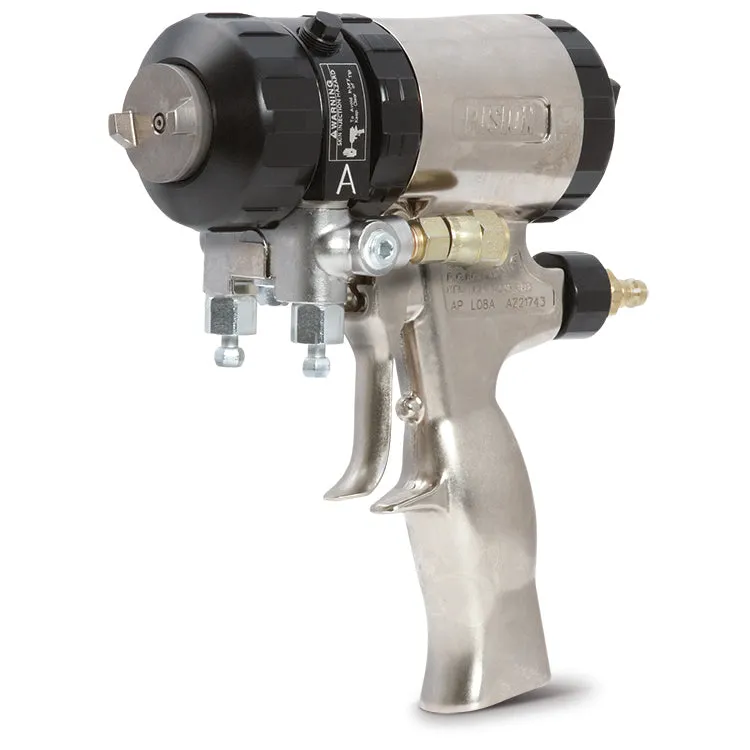

Graco Fusion AP Gun
Plural-Component Spray Gun
The Graco Fusion Air Purge Gun (AP) is a high output spray polyurethane foam and polyurea applications spray gun. With life-long mixing chamber and sustainable side seals, the Fusion AP gun is created to minimize maintenance and increase spray time with a quality mix.
Application for use:
- Roof Coatings
- Pipe & Tank Coating
- Secondary Containment Spill Prevention
- Spray On Bedliners
- Waterproofing
- Roof & Wall Insulation
Stripped down version excludes the following:
- Hose fluid manifold
- Tools: nut driver, clean out tools, pin vise, screw driver, grease gun/grease
- Airline accessories: airline, airline coupler, ball valve, additional airline fitting
- Accessories: gun flush manifold, fusion grease, gun covers, quick-start guide
Materials:
- Adhesives
- HB Fuller Flextra-Fast WD4120 & WD4132
- Polyurethane
- Polyurea
- Polyurethane Coatings
- Spray Polyurethane Foam
Technical Specs
- Maximum Output: 50 lb/minute
- Minimum Output: 3 lb/minute
- Maximum Fluid Working Pressure: 3500 psi
- Maximum Working Air Inlet Pressure: 130 psi
- Maximum Fluid Temperature: 200°F
- Weight with Manifold: 3.26 lb
- Air Inlet Size: 1/4 npt
- A Component (ISO) Inlet Size: -5 JIC; 1/2-20 UNF swivel
- B Component (Resin) Inlet Size: -6 JIC; 9/16-18 UNF swivel
- Wetted Parts: Aluminum, stainless steel, plated carbon steel, brass, chemically resistant O-rings
