Belden's DB6BNCU RG6-Double Bubble- BNC Connector

Belden's DB6BNCU RG6-Double Bubble- BNC Connector

$ 49.39

$ 64.21

Unavailable
Belden's DB6BNCU RG6-Double Bubble- BNC Connector

Belden's DB6BNCU RG6-Double Bubble- BNC Connector

$ 49.39

$ 64.21

Title:
  • DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

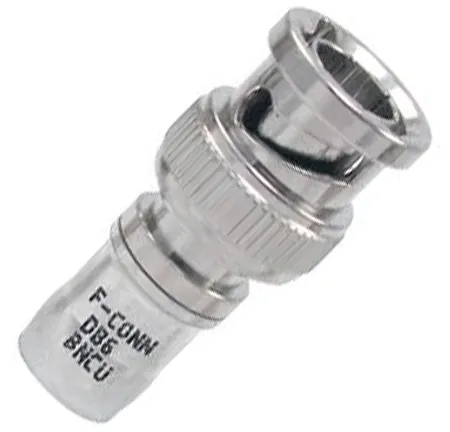

Belden DB6BNCU Double Bubble BNC Connector

Please Note

The DB6BNCU is a Universal "BNC" type connector that fits standard, tri-shield, and quad shield RG6U Coax Cable. The DB6BNCU connector is ideal for security CCTV cameras and any other installations where cable is exposed.

Belden's Double Bubble BNC connectors create two 360 degree compression connections, one exterior and one interior, providing a permanent double bubble connection.

Features

  • Creates two 360 degree compression connections for better seal
  • Provides superior protection against moisture

Specifications

  • 75 Ohm Construction
  • DC-1 GHz > 30 dB Return Loss < 1.07 VSWR
  • DC-2 GHz > 25 dB Return Loss < 1.10 VSWR
  • DC-3 GHz > 24 dB Return Loss < 1.16 VSWR
  • Cable Pullout Force Exceeding 65 in/lbs
  • Body Material : Brass
  • Body Material (Plating) : Nickel

Coax Sizing

Cable Min ~ Max (inches) Min ~ Max (mm)
Center .0399 ~ .0418 in 1.01 ~ 1.06 mm
Dielectric .180 ~ .193 in 4.57 ~ 4.90mm
Outer Jacket .265 ~ .305 in 6.73 ~ 7.75mm

Mean Return Loss


Connector Cable Compatibility

Bulk CCTV Store Belden Commscope Genesis General
Coming Soon!

1152A, 1189A, 1190A, 1530A, 1532A, 1613A, 1614A, 1694A, 1840A, 1843A, 1829A, 3092A, 3093A, 3131A, 533945, 3539B5, 5339G5, 5339Q5, 5339W5, 5399B5, 7710A, 7711A, 7712A, 7713A, 7915A, 9058, 9062, 9066, 9077, 9116, 9116R, 9118, 9248, 9290, 82120

5726, 5738, 5740, 5781, F660BVV, F677TSVV, F6SSVV, C2621

5002, 5003, 5007, 5008, 5010, 5011, 5012, 5021, 5027, 5050, 5051, 5055, 5060, 5061, 5066, 5067, 5302, 5303, 5361 395011, C5761, C5775, C5776, C5785, C5786, C5789, C8029

Gepco - Isotek Coleman Liberty West Penn Tappan
VSD2001, 181/182CV6, 181CVQ6, 181VT9, IR181VB9, 183VT9, 184VT9, 185VT9 92001, 92003, 92008, 92041, 92042, 92045, 92049, 99601, 992479, 993267, 920036, 920414, 192061, 192115

QUADFLEX

18-CMR-SD-color

806, AQC806, AQC2806, 2806B, 6300, 6350, WP6354, WP6355, Q841 18RG6X2, 18CCSRG6X2/CM

Spec Sheets / Downloads

Downloads
Download Description
DB6BNCU Technical Info

Cable Compatibility Chart

ICM Connector Cross Reference Sheet

How To Guide
